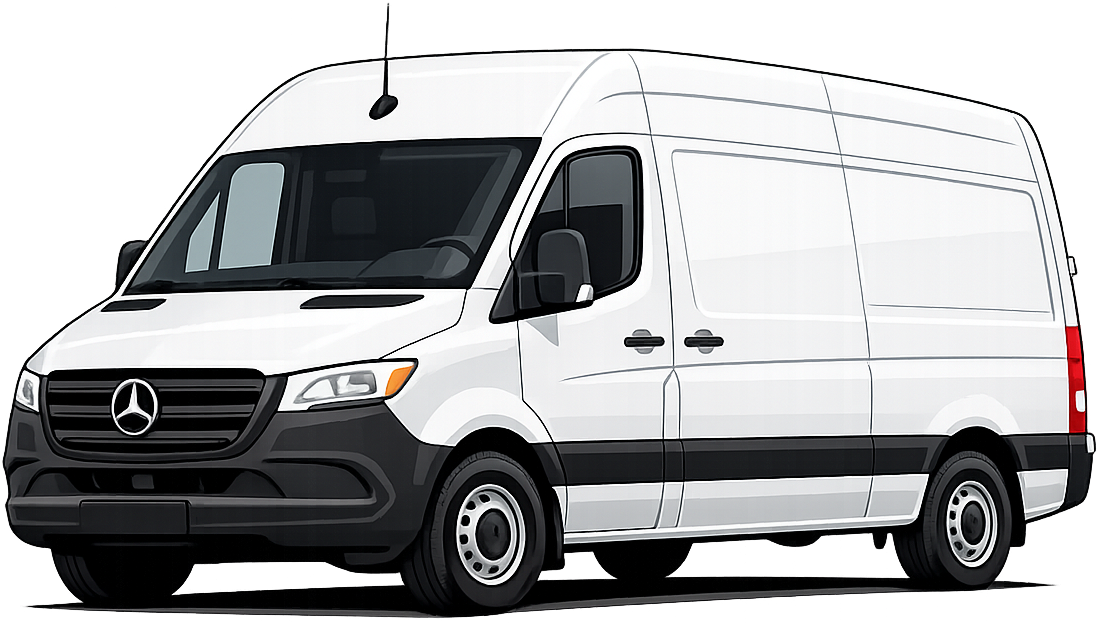

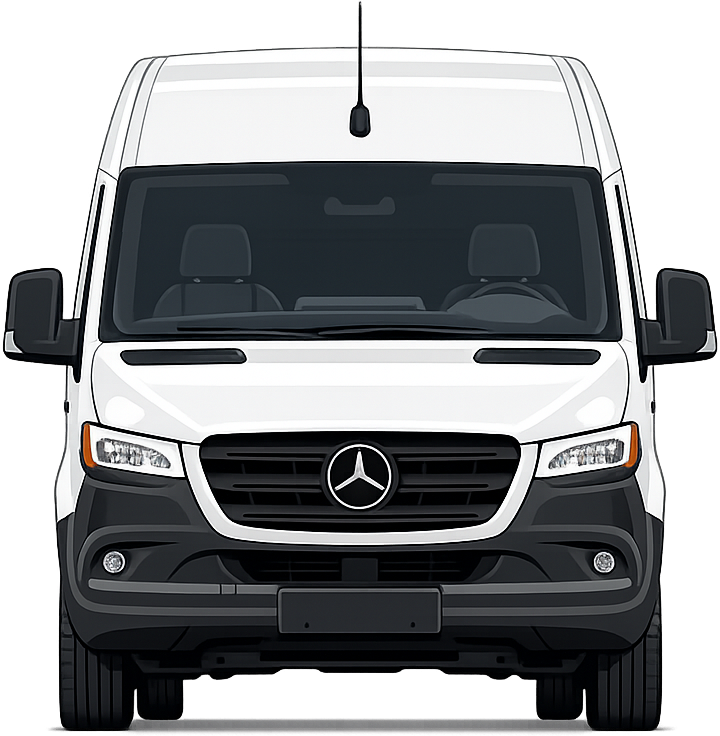

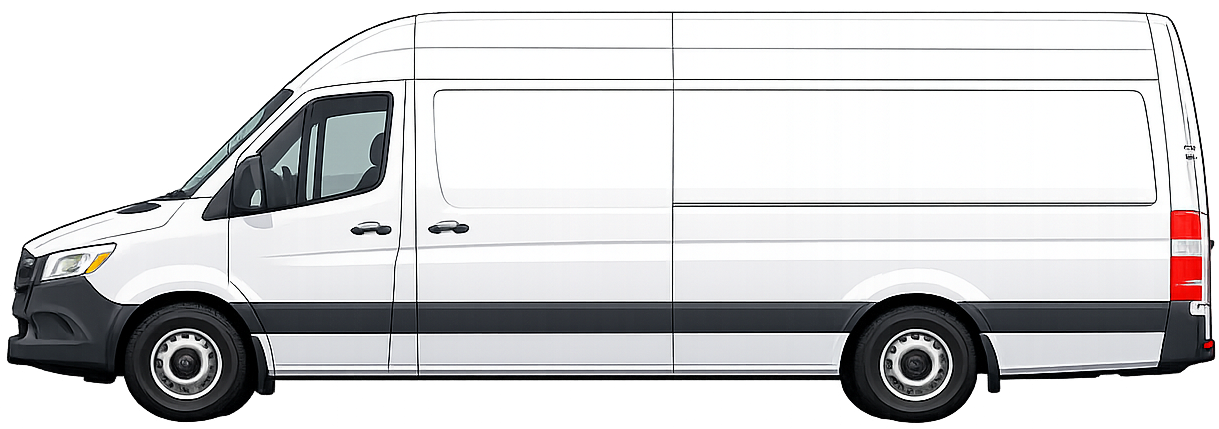

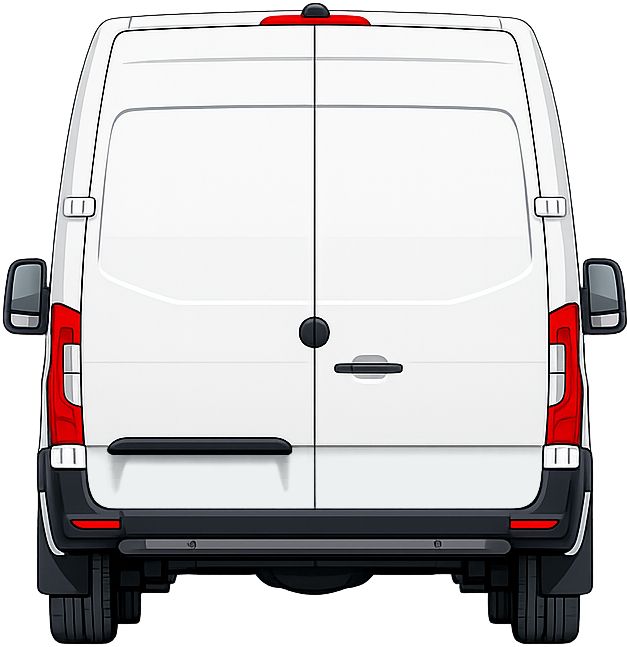

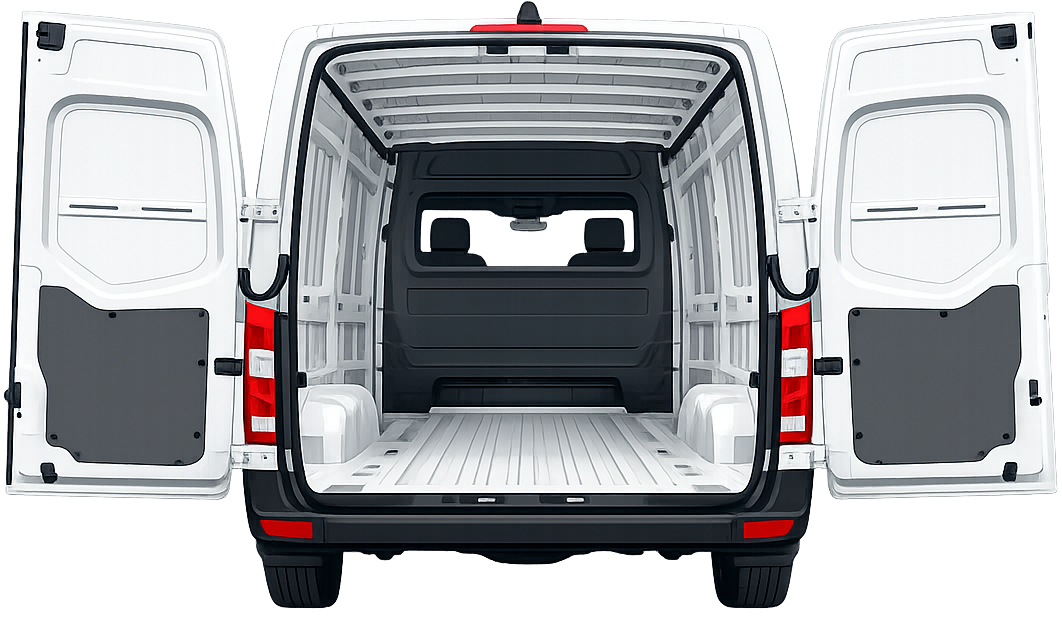

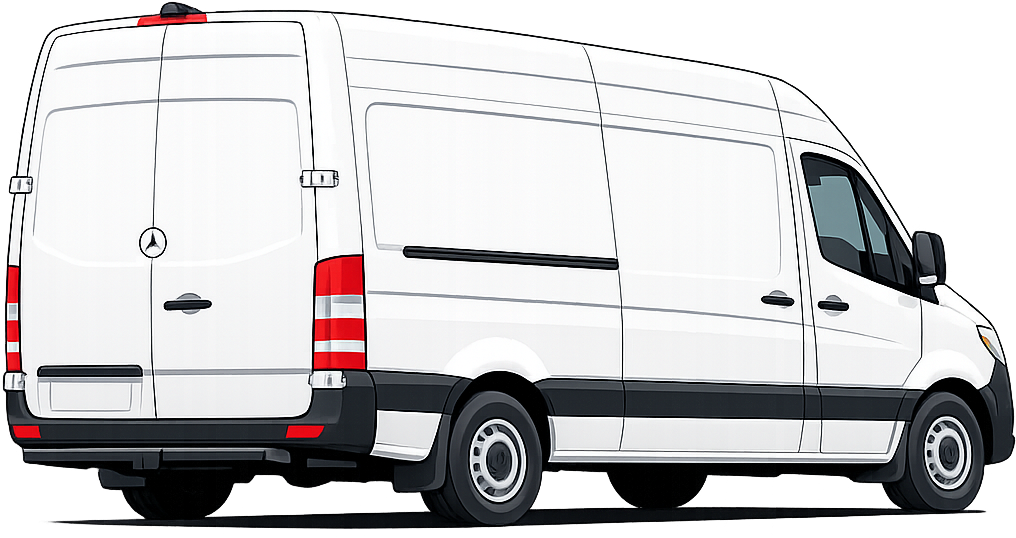

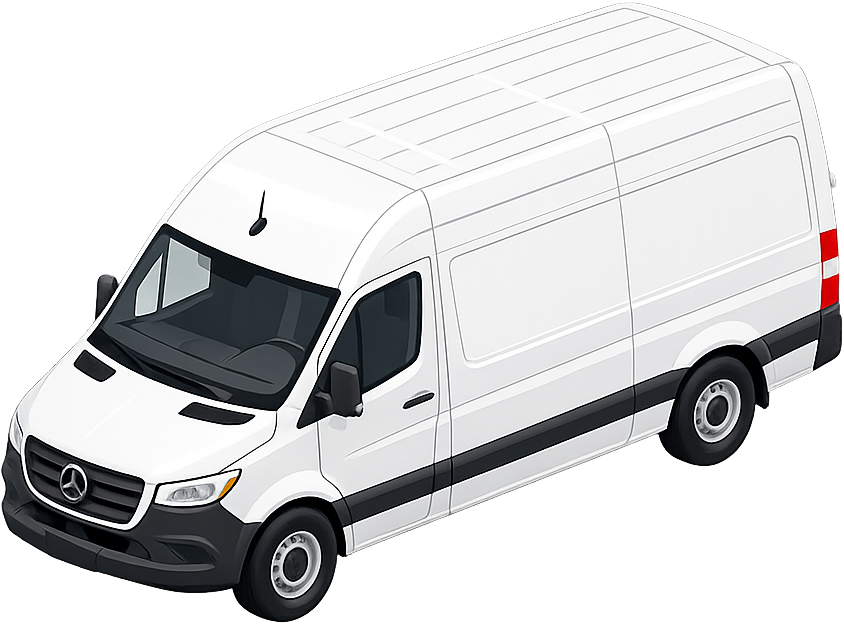

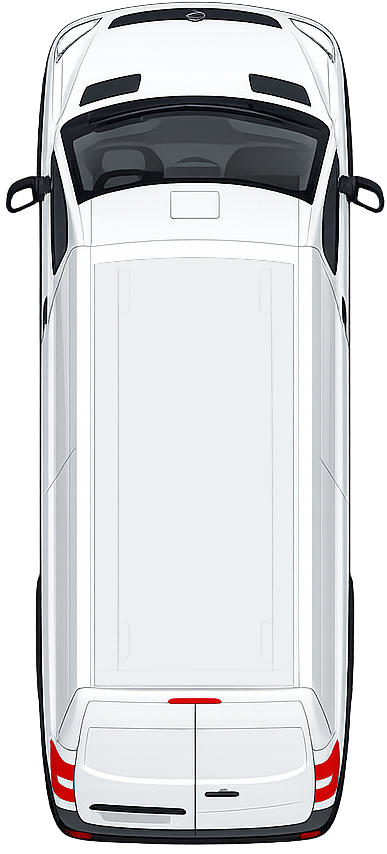

Mercedes-Benz Sprinter
Premium benchmark. Best for high-end builds, resale value, diesel/4x4 buyers, and polished adventure rigs.
Best for: premium adventure vansExecutive Summary

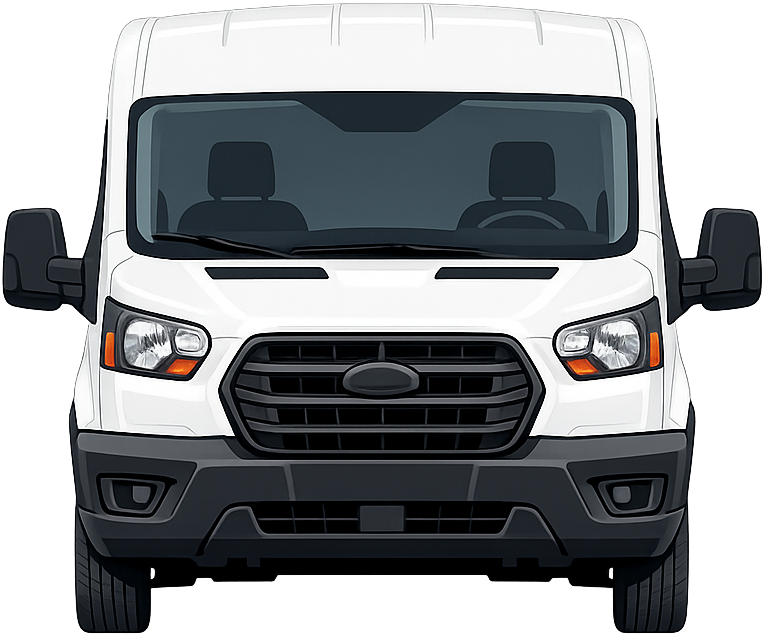

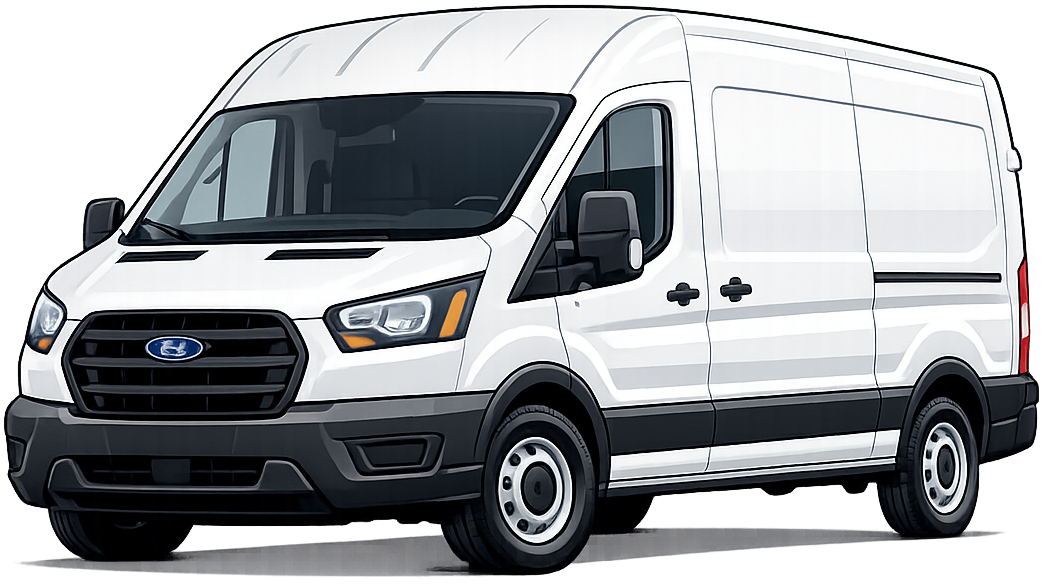

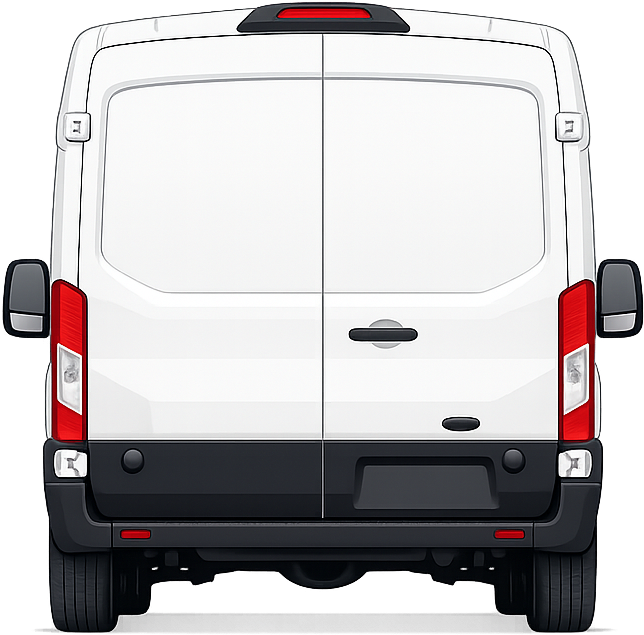

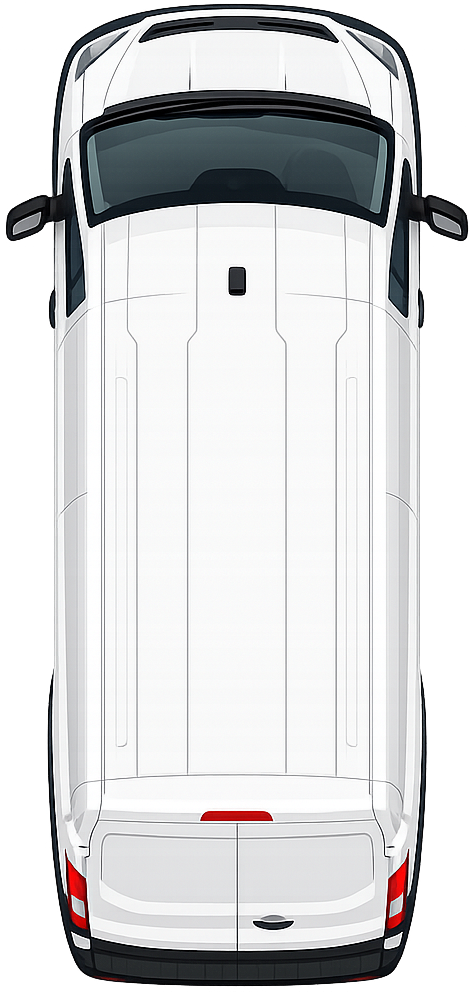

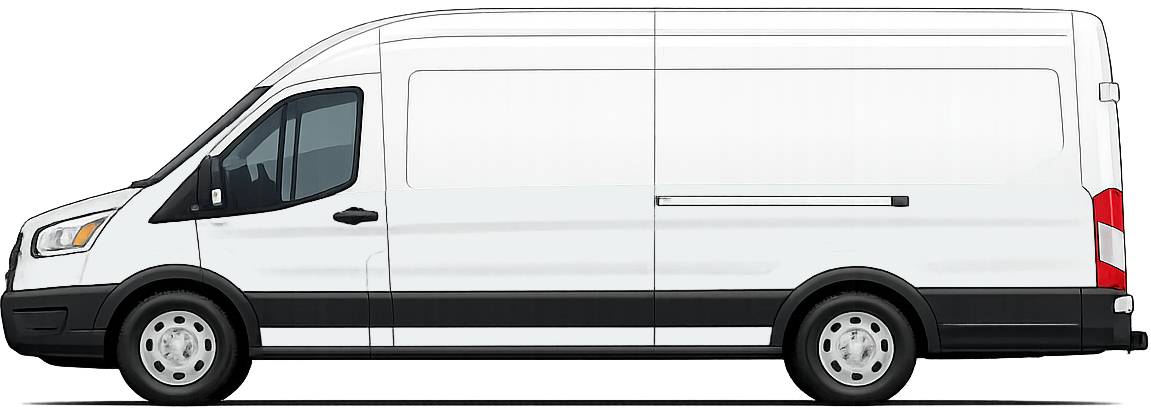

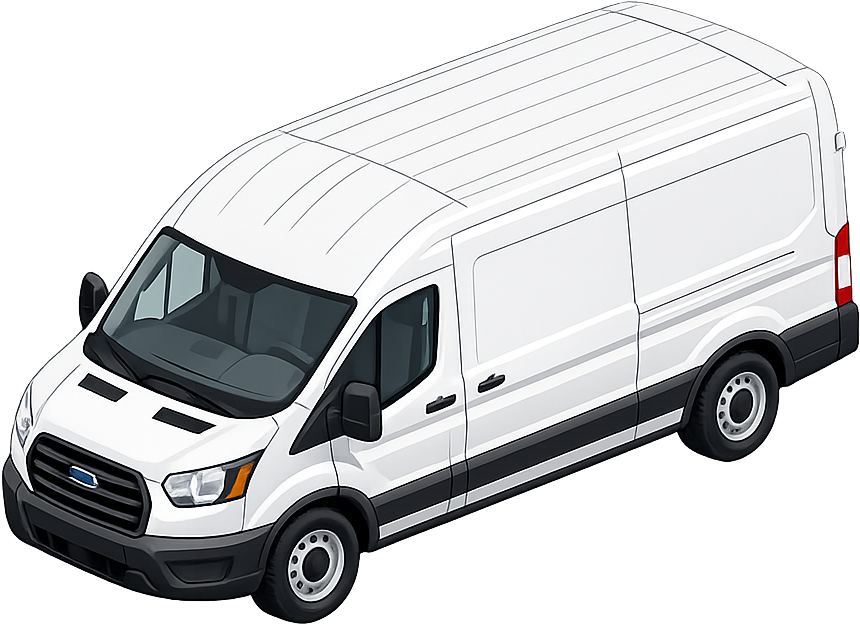

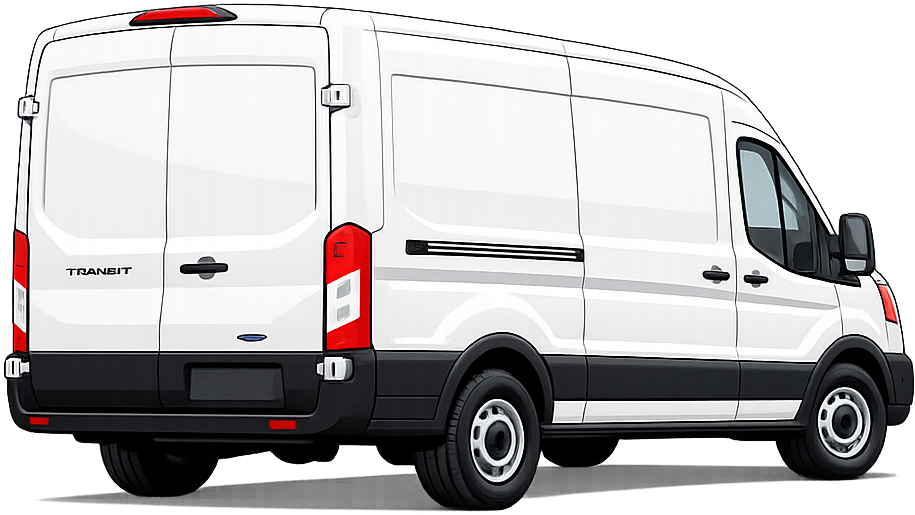

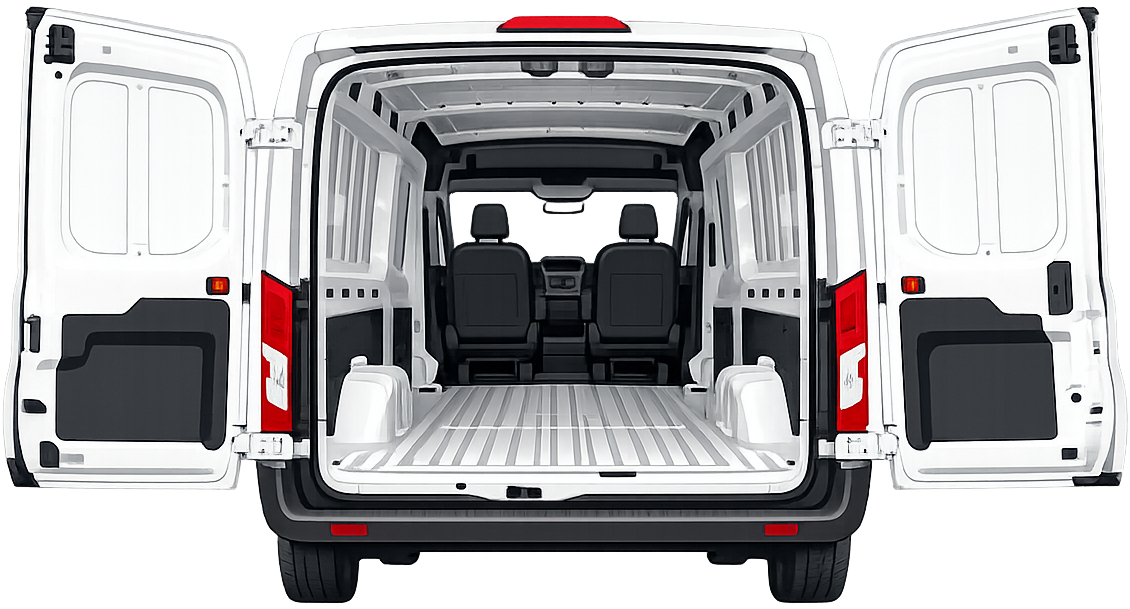

Ford Transit
The practical all-rounder. Excellent dealer network, strong drivability, available AWD, and broad build support.

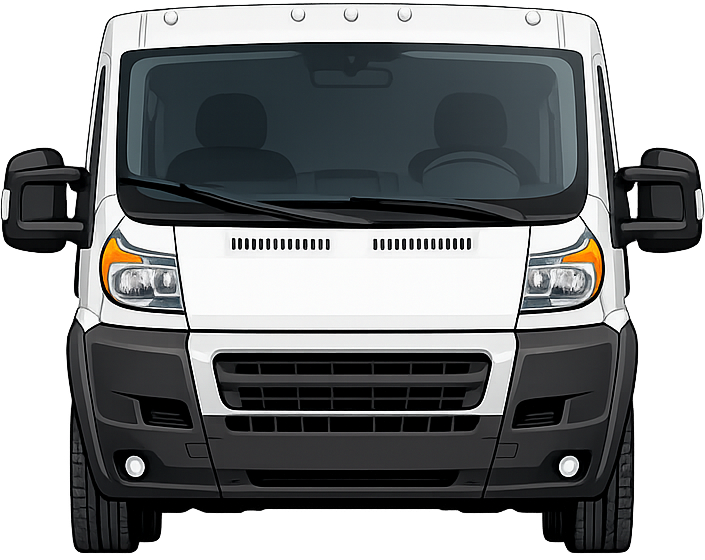

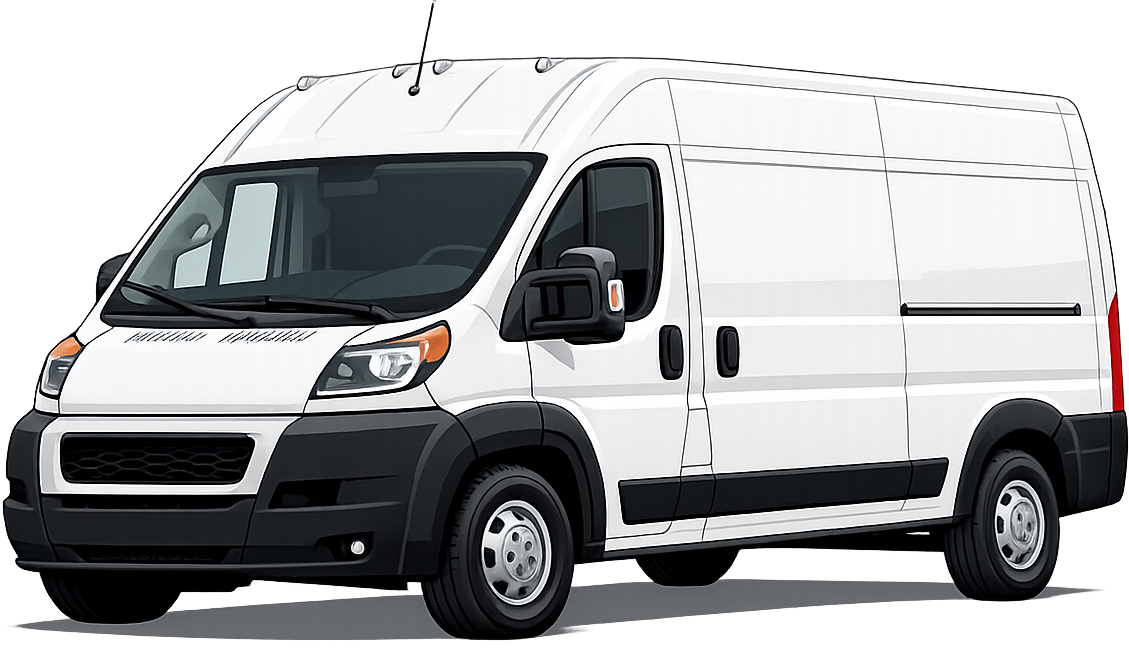

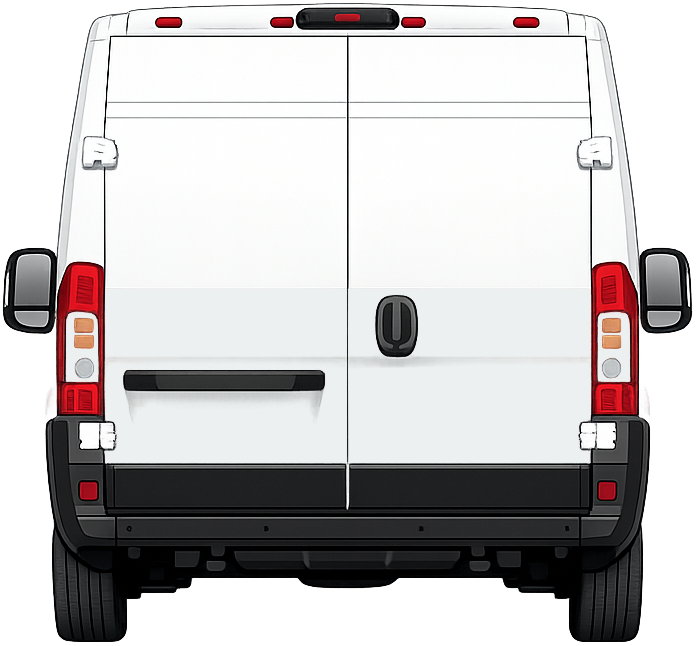

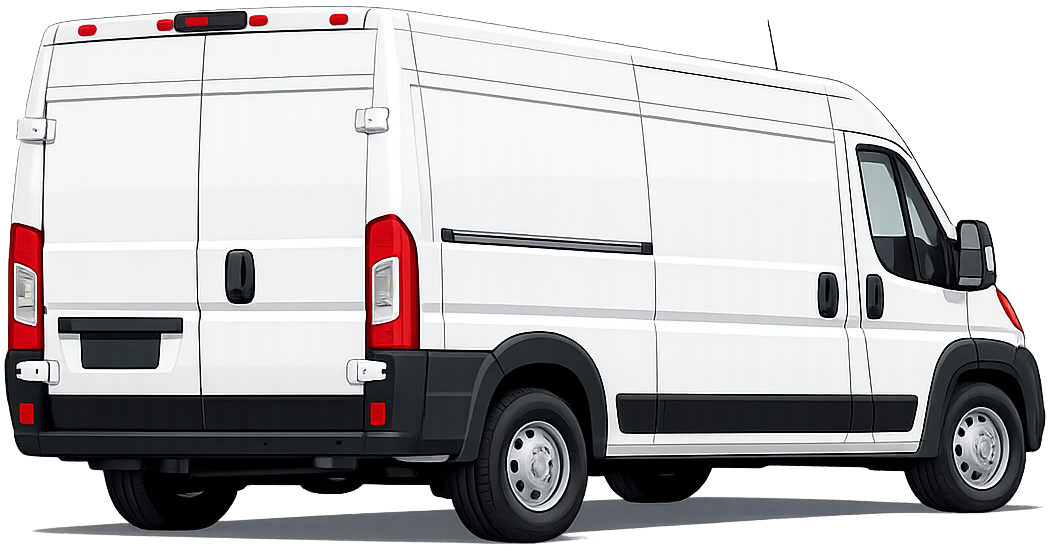

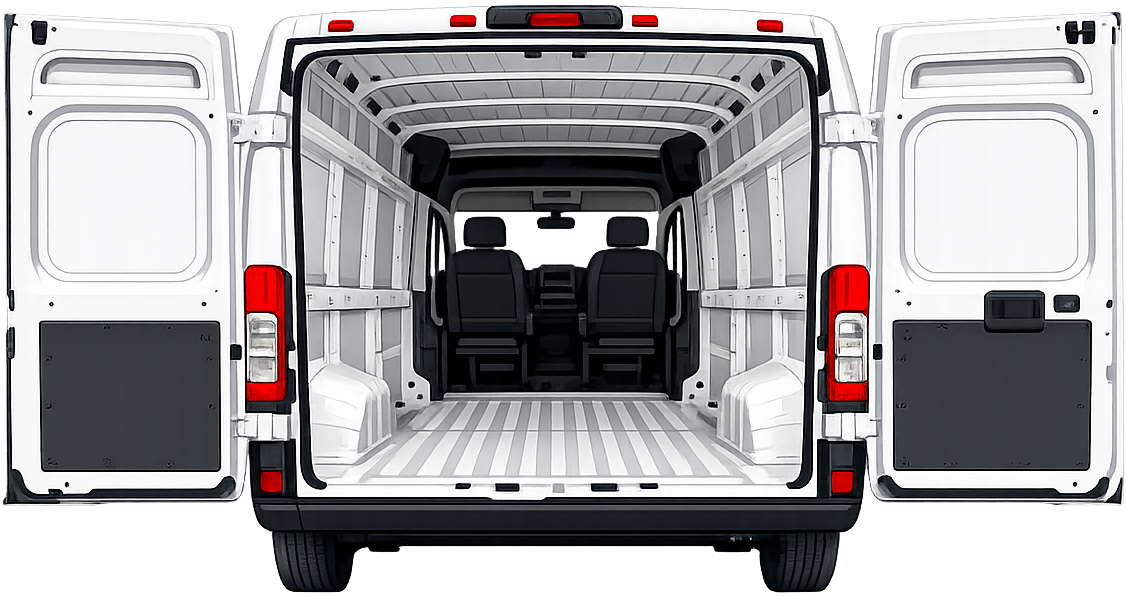

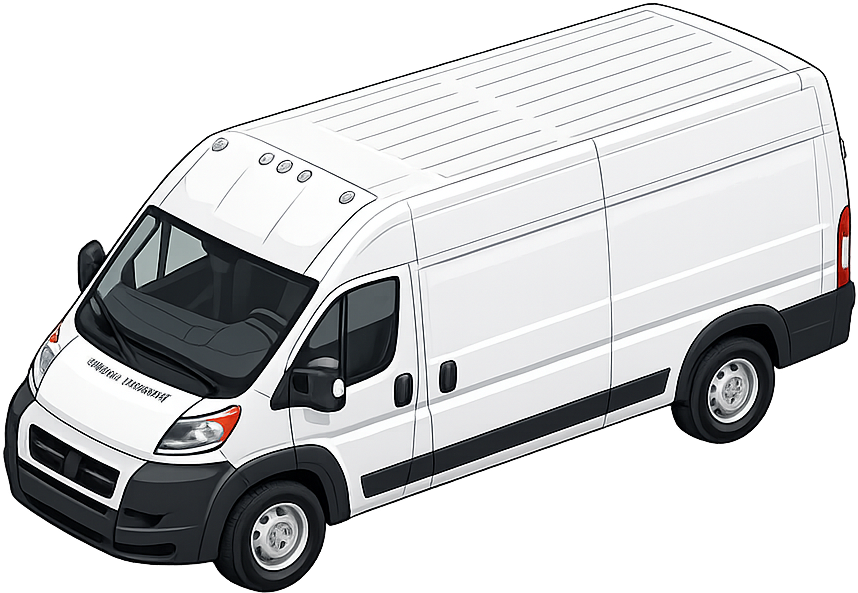

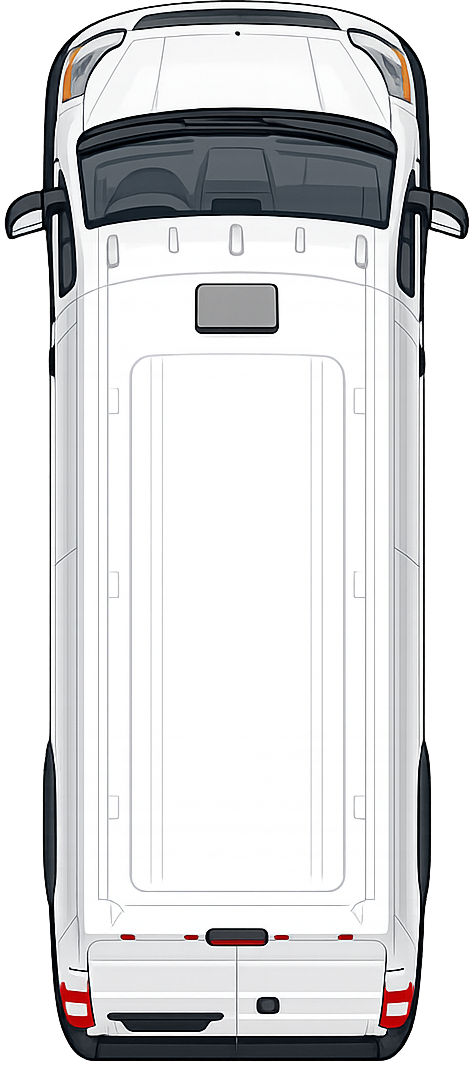

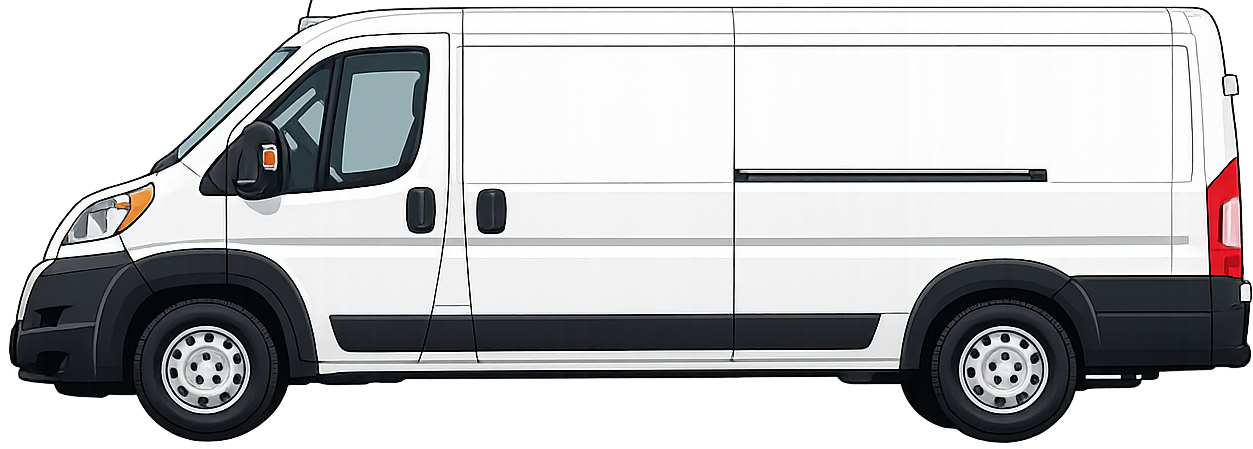

Best for: balanced ownershipRAM ProMaster
Wide, square, affordable, and easy to build. FWD and flat floor make layout work simpler.

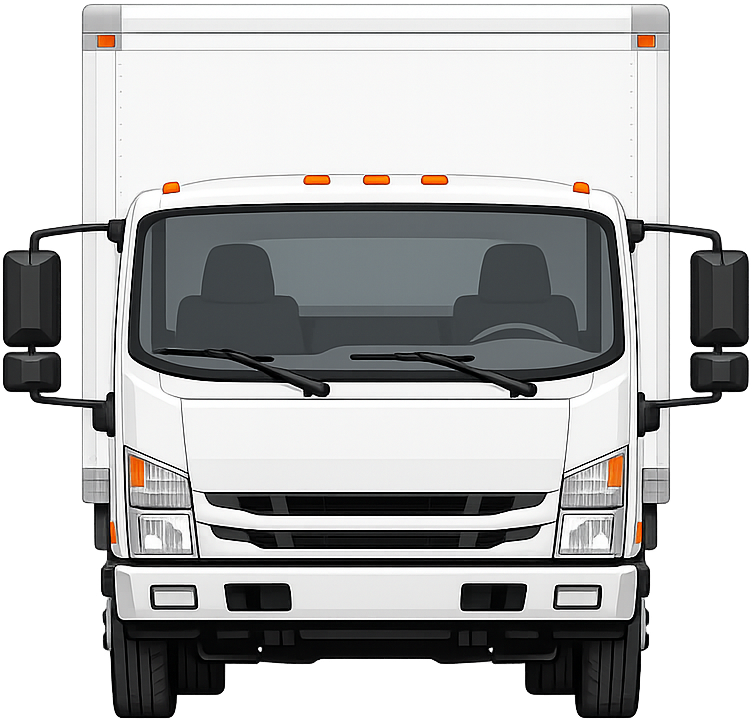

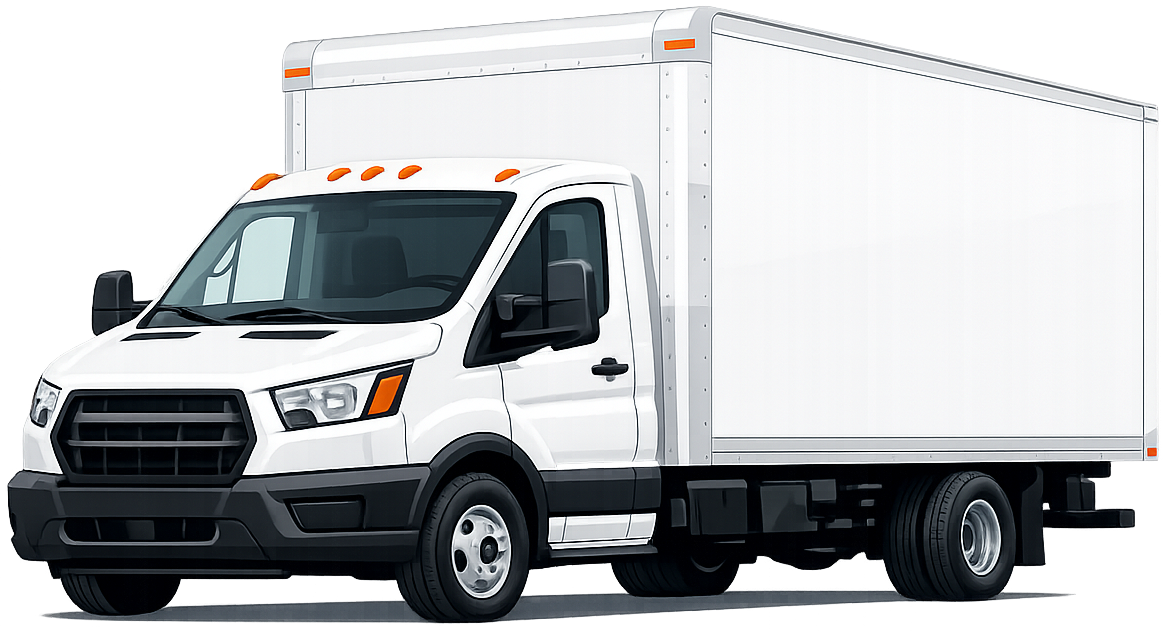

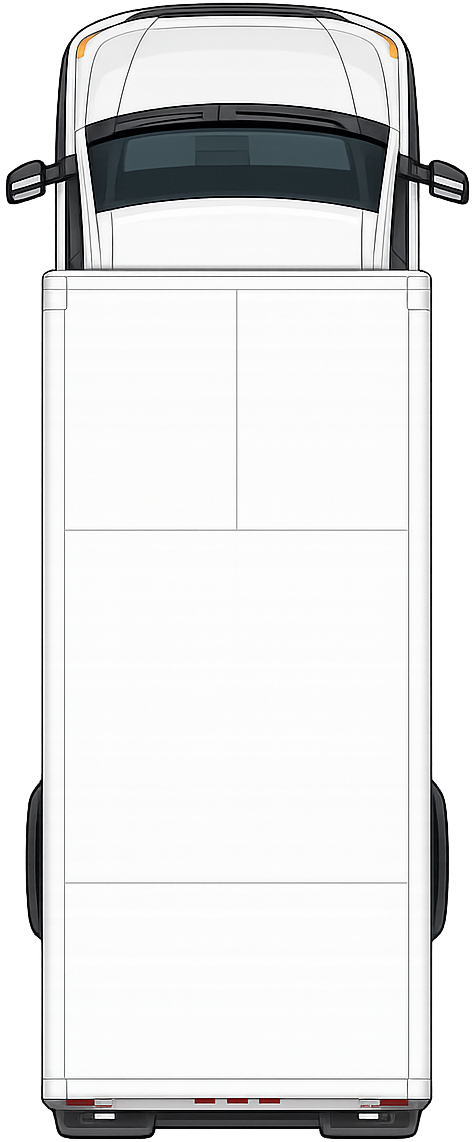

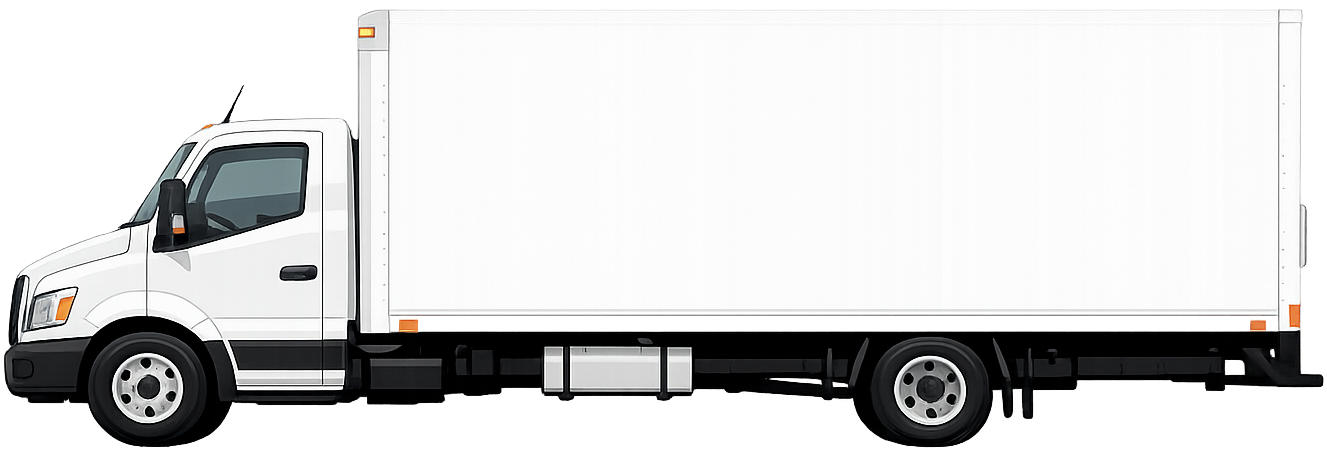

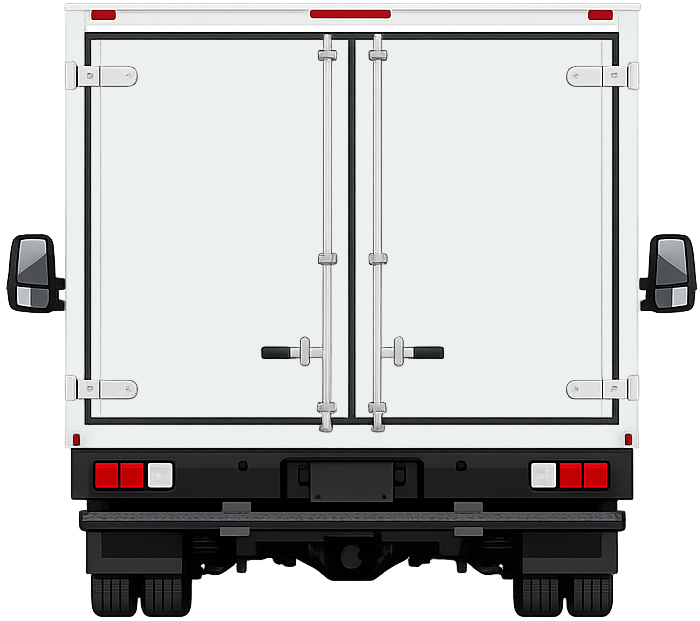

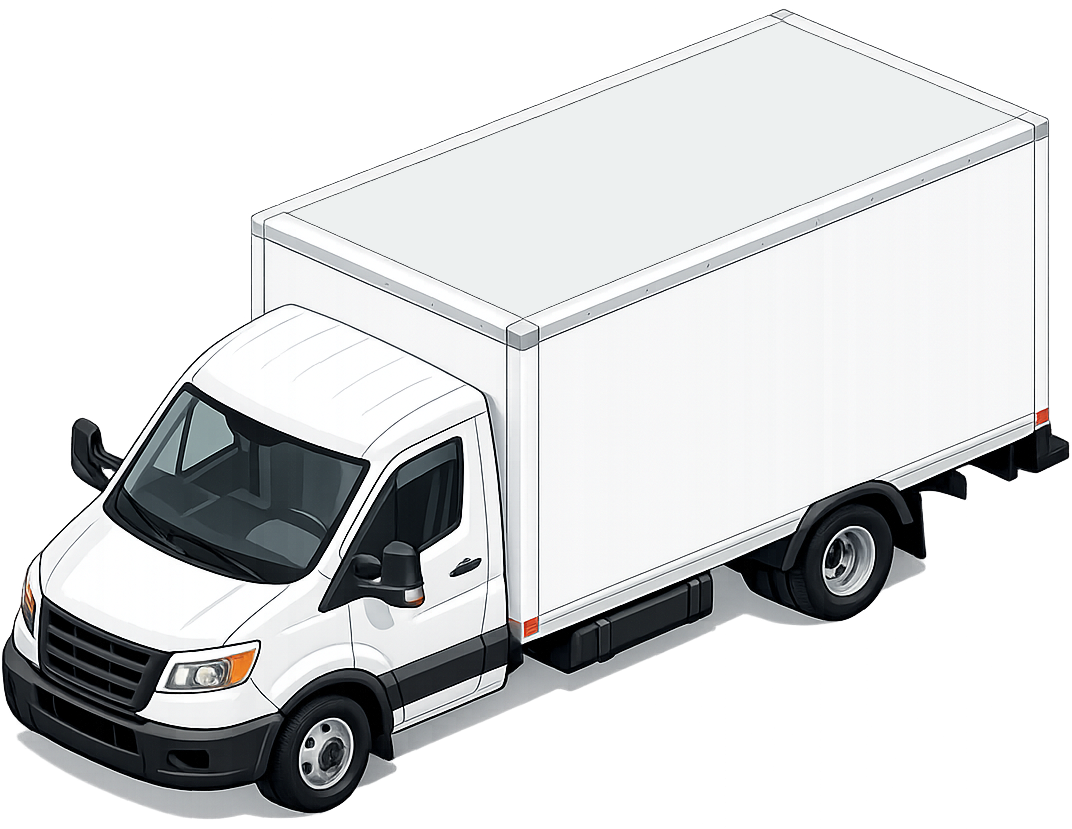

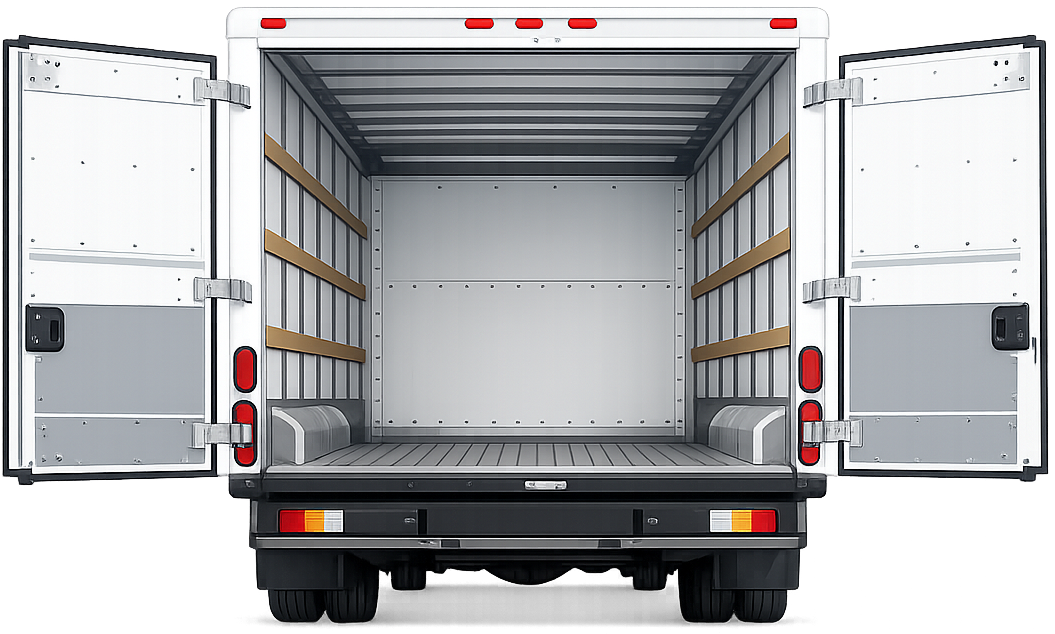

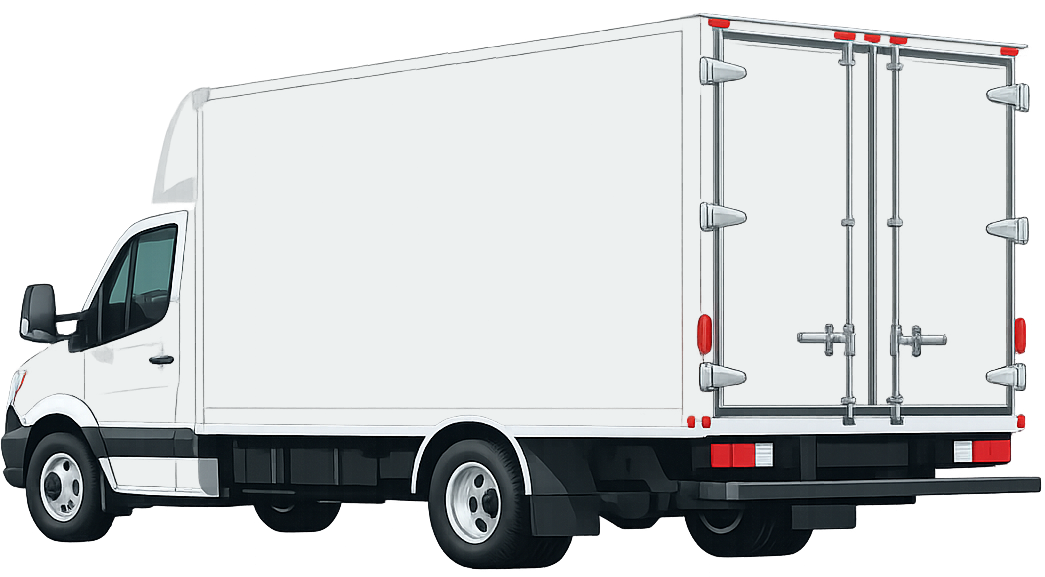

Best for: DIY value buildsBox Truck
Massive living volume and utility capacity, but much harder to park, drive, insure, and stealth camp.

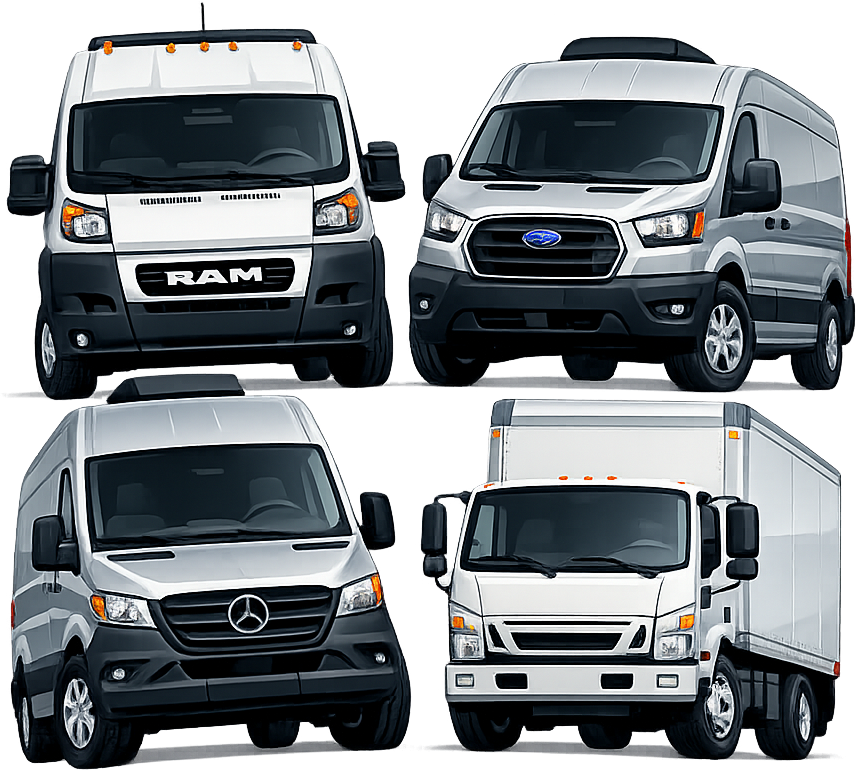

Best for: tiny-home style buildsMeet the Platforms
Tap an image (or use the arrows, dots, or arrow keys) to rotate through view angles for each platform. More angles are added over time.
Deep Comparison
Eight categories, each with a detailed metrics table, a 1–10 scorecard, and a category winner. Switch tabs to explore each dimension, then jump to the weighted overall score.
Cost & Value
Weight 15%| Metric | Sprinter | Transit | ProMaster | Box Truck |
|---|---|---|---|---|
| New price (cargo) | $57k–95k+ | $48k–75k | $45k–65k | $65k–120k+ |
| Typical used (3–6 yr) | $25k–65k | $20k–55k | $18k–45k | $20k–75k |
| 5-yr depreciation | Low–Moderate | Moderate | Moderate–High | High |
| Est. annual insurance | $1,600–2,800 | $1,400–2,400 | $1,300–2,200 | $1,800–3,500 |
| Registration class | Passenger/commercial | Passenger/commercial | Passenger/commercial | Often commercial/DOT |
| Resale strength | Excellent | Excellent | Good | Moderate |
Category winner: ProMaster. Lowest entry and used pricing plus cheap parts make it the value leader. The Sprinter costs the most up front but claws value back through the strongest resale; the box truck’s low buy-in is offset by commercial insurance and registration.
Size & Space
Weight 12%| Metric | Sprinter | Transit | ProMaster | Box Truck |
|---|---|---|---|---|
| Max interior width | ~70 in | ~70 in | ~75.5 in | 90–96+ in |
| Width between wheel wells | ~53 in | ~54 in | ~57 in | Full width (90+ in) |
| Interior height (high roof) | 67–79 in | 72–81 in | 65–76 in | 84–96+ in |
| Length options | 144–170+ in WB | 130–148 in (reg–EL) | 118–159 in WB | 10–26 ft box |
| Max cargo volume | ~533 cu ft | 487 cu ft | 524 cu ft | 900–1,500+ cu ft |
| Floor shape | Slight arches | Wheel arches | Flattest, widest | Fully flat & square |
| Sideways bed fit (6'+) | No | No | Yes (widest van) | Yes |
Category winner: Box Truck. Nothing on wheels beats a box for raw living volume and square walls. Among the vans, the ProMaster’s extra width lets a tall person sleep sideways, reclaiming length for the galley and seating.
Drivetrain & Capability
Weight 14%| Metric | Sprinter | Transit | ProMaster | Box Truck |
|---|---|---|---|---|
| Drive layouts | RWD / AWD / 4x4 | RWD / AWD | FWD | RWD (dual rear) |
| Engine | 2.0L / 3.0L diesel | 3.5L V6 / EcoBoost | 3.6L V6 gas | 6.0–7.3L gas / diesel |
| Horsepower | 168–211 | 275–310 | 276 | 300–350 |
| Torque (lb-ft) | 266–369 | 262–400 | 250 | 400–725 |
| Payload | 3,000–4,000 lb | 3,000–4,600 lb | 3,000–4,400 lb | 3,000–10,000+ lb |
| Max towing | ~5,000 lb | ~6,500 lb | ~6,800 lb | 10,000+ lb |
| GVWR | 8,550–11,030 | 8,670–10,360 | 8,900–9,350 | 10,000–26,000 |
| Off-road / winter | Excellent (4x4 + diesel) | Very good (AWD) | Fair (FWD + traction) | Poor (road only) |
Category winner: Sprinter & Transit (tie). The Sprinter’s true 4x4 with diesel torque is the trail benchmark; the Transit’s AWD is nearly as capable and cheaper. The ProMaster is FWD only (surprisingly good in snow, weak in deep sand/mud). The box hauls the most weight but stays on pavement.
Fuel & Efficiency
Weight 12%| Metric | Sprinter | Transit | ProMaster | Box Truck |
|---|---|---|---|---|
| Fuel type | Diesel | Gas | Gas | Gas / Diesel |
| Observed MPG | 16–22 | 15–20 | 15–19 | 8–12 |
| Tank size | ~24.5 gal + DEF | ~25 gal | ~24 gal | 30–50 gal |
| Highway range | ~400–500 mi | ~375–450 mi | ~360–430 mi | ~300–500 mi |
| Est. annual fuel (15k mi) | $2,500–3,500 | $2,800–3,800 | $2,900–3,900 | $5,500–8,000 |
| Emissions equipment | DEF / DPF diesel | Simpler gas | Simpler gas | DEF diesel / gas |
Category winner: Sprinter. The diesel delivers the best real-world MPG and touring range, at the cost of DEF/DPF emissions maintenance. Gas vans are close and simpler; the box truck’s thirst is the single biggest running-cost penalty on this page.
Reliability & Ownership
Weight 16%| Metric | Sprinter | Transit | ProMaster | Box Truck |
|---|---|---|---|---|
| Reliability reputation | Good but pricey | Very good | Fair–Good | Good (commercial) |
| Common issues | DEF/emissions, rust | Minor electronics | Electrical, 9-spd | Age/mileage varies |
| Dealer / service network | Moderate | Excellent | Excellent | Good (diesel shops) |
| Parts cost | High | Low | Low | Moderate |
| Diagnostics | Often dealer | Common | Common | Common commercial |
| Basic warranty | 3yr/36k + 5yr diesel | 3yr/36k + 5yr PT | 3yr/36k + 5yr PT | Varies / commercial |
Category winner: Transit. A Ford dealer in nearly every town, cheap parts, and gas simplicity make it the lowest-stress long-term owner. The Sprinter is the opposite end: capable but expensive to service with a thinner network, the reason it loses the most weight here.
Conversion & Build
Weight 13%| Metric | Sprinter | Transit | ProMaster | Box Truck |
|---|---|---|---|---|
| Aftermarket ecosystem | Largest | Very large | Large | Small (custom) |
| Flat floor | No (slight) | No | Flattest | Yes (fully) |
| Wall shape | Curved | Curved | More vertical | Vertical / square |
| Bolt-in kits / windows | Excellent | Excellent | Good | Custom |
| Roof fan / rack options | Excellent | Excellent | Good | Abundant roof area |
| Insulation ease | Moderate | Moderate | Easier (square) | Full weatherproofing |
| Build weight headroom | Good | Good | Good | Excellent |
Category winner: Sprinter & ProMaster (tie). The Sprinter has the deepest catalog of bolt-in parts; the ProMaster’s square, flat, wide box is the easiest raw shell to frame and insulate. The box truck is a blank slate with the most payload, but you build (and weatherproof) far more from scratch.
Daily Livability
Weight 12%| Metric | Sprinter | Transit | ProMaster | Box Truck |
|---|---|---|---|---|
| Daily drivability | Very good | Excellent | Good | Poor–Fair |
| Parking / maneuvering | Good | Very good | Good | Poor |
| Turning radius | Moderate | Tight | Tight (FWD) | Wide |
| Stealth camping | Good | Very good | Good | Very poor |
| Garage / urban fit | Fits many | Fits most | Tall (>7 ft) | Rarely |
| Ride comfort / noise | Refined | Comfortable | Utilitarian | Truck-like |
| Overall height | ~9–10 ft | ~8.9–9.5 ft | ~8.5–9 ft | 10–12+ ft |
Category winner: Transit. It drives closest to a normal vehicle, parks easily, and stealths well. The Sprinter is the most refined but tallest of the vans; the box truck trades daily usability entirely for living space: parking, stealth, and clearance are constant compromises.
Off-Grid & Systems
Weight 6%| System | Sprinter | Transit | ProMaster | Box Truck |
|---|---|---|---|---|
| Roof solar capacity | 300–800W | 300–800W | 300–800W | 800–1,600W |
| Battery bank | 200–600Ah | 200–600Ah | 200–600Ah | 600–1,200Ah+ |
| Fresh water | 20–40 gal | 20–40 gal | 20–40 gal | 50–100+ gal |
| Gray water | 5–25 gal | 5–25 gal | 5–25 gal | 25–75 gal |
| Heating / AC headroom | Good | Good | Good | Excellent |
| Best use case | Mobility + trailheads | Balanced mobility | Value mobility | Stationary tiny-home |
Category winner: Box Truck. Roof area, floor volume, and payload let a box carry far more solar, battery, and water, ideal for long stationary stays. The vans are closely matched; the Sprinter edges ahead on the longest roofs (170" wheelbase).
Overall Weighted Score
Each category’s 1–10 scores are multiplied by the weights below (tuned for a typical two-person adventure camper) and summed to a 0–100 result. Reliability, cost, and capability carry the most weight; off-grid the least, since most builds prioritize mobility over stationary living.
| Category (weight) | Sprinter | Transit | ProMaster | Box Truck |
|---|---|---|---|---|
| Cost & Value (15%) | 6 | 8 | 9 | 6 |
| Size & Space (12%) | 7 | 7 | 8 | 10 |
| Drivetrain & Capability (14%) | 9 | 9 | 6 | 7 |
| Fuel & Efficiency (12%) | 9 | 8 | 7 | 3 |
| Reliability & Ownership (16%) | 6 | 9 | 7 | 8 |
| Conversion & Build (13%) | 9 | 8 | 9 | 6 |
| Daily Livability (12%) | 8 | 9 | 7 | 3 |
| Off-Grid & Systems (6%) | 8 | 7 | 7 | 10 |
| Weighted total (100) | 77 | 82 | 75 | 65 |
1st · Best overall
Ford Transit
82 /100
Balanced all-rounder2nd
Sprinter
77 /100
Premium benchmark3rd
ProMaster
75 /100
Best value / DIY4th
Box Truck
65 /100
Max living space- Reliability & Ownership16%
- Cost & Value15%
- Drivetrain & Capability14%
- Conversion & Build13%
- Size & Space12%
- Fuel & Efficiency12%
- Daily Livability12%
- Off-Grid & Systems6%
Change the weights to match your priorities and the ranking can shift: a full-time stationary builder should raise Size and Off-Grid, which narrows the box truck’s gap; an off-road traveler should raise Capability, favoring the Sprinter.
Conversion Budget Ranges
- Basic weekend build: $8k–20k
- Comfortable DIY build: $20k–50k
- High-end DIY / semi-pro: $50k–100k
- Professional luxury build: $100k–250k+
Hidden Costs
Plan for tax, title, insurance, registration, tires, suspension upgrades, roof fan, insulation, heater, electrical system, solar, batteries, shore power, cabinetry, plumbing, water tanks, toilet, fridge, induction, and maintenance reserve.
Layout Implications
Sprinter
Best for premium longitudinal bed layouts, large garage, shower galley combos, and clean cabinetry.
Transit
Excellent for fixed bed + garage, convertible dinette, rear lounge, or balanced two-person adventure layout.
ProMaster
Wide enough for many sideways bed designs, saving valuable interior length for galley and seating.
Box Truck
Supports true tiny-home layouts: separate bedroom, full wet bath, larger kitchen, dinette, office, and bigger tanks.
Recommendation
Choose the Ford Transit AWD High Roof Extended if you want the best total package for a conversion van: good price, available AWD, excellent service availability, comfortable road manners, strong resale, and enough interior room for a serious two-person build. It tops the weighted scorecard at 82/100.
Choose the Sprinter (77) if you want the premium benchmark and true 4x4, and can absorb higher repair costs. Choose the ProMaster (75) if you want the easiest and most affordable DIY interior. Choose the Box Truck (65) if living space matters more than parking, stealth, MPG, and daily drivability.
Source Notes
Pricing and specifications were compiled from manufacturer pages and current commercial listings as of June 2026. Scores are editorial estimates for a typical two-person adventure camper and are meant for relative comparison, not exact figures. Always verify exact configuration, destination charge, dealer fees, incentives, emissions rules, insurance, and registration requirements before buying.
- Mercedes-Benz Vans official Sprinter Cargo Van MSRP/specs.
- Ford Pro official Transit fleet van starting price and Ford Transit cargo volume/payload specs.
- RAM official ProMaster MSRP and cargo-volume claims.
- Commercial box truck market listings for Isuzu/Ford/Chevrolet examples.
